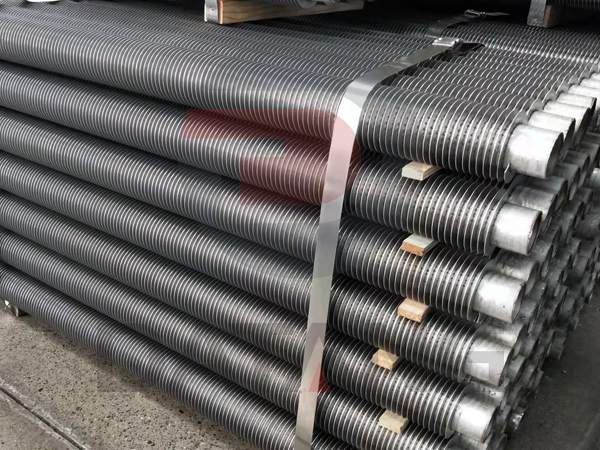

Cold Drawn Seamless Carbon Steel A179 Extruded Fin Tube

Fin Type: Cold Drawn Seamless Carbon Steel A179 Extruded Fin Tube
Tube Material: Carbon steel
Type of Base Pipe :Seamlesss,Welded
Leave Your Message

First Name
Last Name
Email
Subject
Whatsapp&Wechat number
Your message!

Description

A213 T22 , OD1” X 54′ Length X 10FPI X Alu 1100 Fins , extruded high fin cooling tube

Tube Type:Seamless (Cold Drawn)
Ends:Plain ends or bevel ends.
Surface protection:black painting,anti-rust oil or varnish.

ASTM A53 Grade B, ASME SA53 Gr B, API-5L Gr B, ASTM A106 Gr B, ASME SA106 Gr B, ASTM A106 Gr C , Carbon Steel Fin Tubes
Seamless Welded Pipe, API-5L Gr B, API-5L Gr X42, API-5L Gr X52, API-5L Gr X60, API-5L Gr X65PSL1 and PSL2 Pipes Carbon Steel Fin Tubes.

Introduction:
A smooth core tube is inserted into an aluminum sleeve and then the fins are extruded out of the aluminum sleeve. The fins are solid plain or serrated into 12, 16 or 24 segments or as your design. And both plain ends with appr. 10mm~50mm and gaps (Unfinned Section) in the middle. All the goods shall be Zinc or Aluminum that metallized applied by an electro spray arc system coating on surface. Besides, we provide Tube Support Box, Clamp or Spacer Box(Materials: Aluminum, Zinc or Stainless Steel).
Applications:
It is widely used for Heat Exchanger , Air-conditioner , Refrigerator, Economizer
and other parts of Heat Industry.
Material of Base Pipe :Carbon steel
Material of Fins :Carbon steel
Type of Base Pipe :Seamlesss,Welded
Type of Fins :Longitudial
OD of Base Pipes :15mm-219mm
WT of Base Pipes :1.5-6mm
Height of Fins :8mm-30mm
WT of Fins :0.8mm-3.0mm
Pitch of Fins :2.3m-20mm
Length of Blank Area :according to Customer’s request.
Length of Finned Tubes :≤23m
The common application fileds are:
Heat exchangers units for power plant(electric, nuclear, thermal and geothermal power plants);

High corrosive systems (condensers, evaporators, sea water desalinations, fertilizing, urea systems, ammonia, gas, corrosive acids);
The petroleum, chemical and petrochemical industries;
The food processing and refrigeration industries;
Natural gas treatment;
General specifications of Extruded Fin Tubes
Tube OD: 12mm min.~50.8mm(2”) max.
Tube Length: 18 meters max.
Fin Height: 16.5 mm max.
Fin Thickness: appr. 0.4mm/0.5mm/0.6mm
Fin Pitch: 1.5mm min.
General extrusion production capacity
Extrusion Facility: 10 finning machines.
Daily capacity up to 3000 meters.
Extruded fins type: solid plain and serrated.

carbon steel fin tube

Carbon Steel Fin Tubes Packaging

Our packaging section for Carbon Steel Fin Tubes is of high standard, as we are concerned about reaching the products safely to the destinatin. We use Plywood Cases / Pallets, Free-Fumigated Wooden Box for heavy thick fitting products because reaching the products to your destination is our assurrity. All shipping documentation is provided for seamless delivery form mill to customers.
