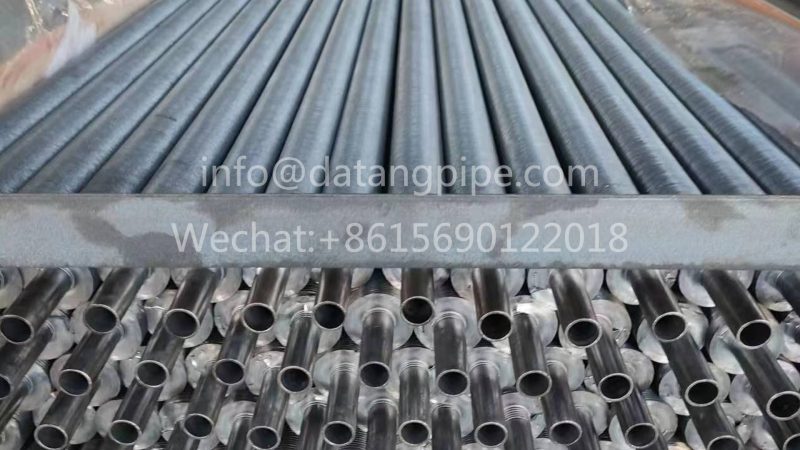

Embedded G type Aluminum 1070 Fin with carbon bare tubes

Description:
Datang Fin Tube as one of the leading suppliers in China to supply Embedded Aluminum 1070 Fin with carbon bare tubesfor petroleum industry and Heat Exchanger industry and Machining Industry etc.

Embedded G type Aluminum 1070 Fin with carbon bare tubes Description:

Detailed Product Description
1) Quality Extruded Fin Tubes
2) Highly Competitive Rates
3) Well Experienced Team
4) Delivery Within Stipulated Time Frame

Leading Manufacturer of Embedded G type Fin Tubes.
We will guarantee that you receive a high-quality product at a highly-competitive price.

Product Range:
Embedded G type Finned Tube
Base Tube OD: ø15.88-ø50.8 mm
Base Tube Wall Thickness:1.0-3.0mm
Fin Thickness: 0.25-0.45 mm
Fin Height：6.35-25.4mm
Fin pitch: to your requirement

Extruded Finned tubes:
Base Tube Material: stainless steel, carbon steel, alloy
Bare tube size: OD12mm-OD60mm

Fins Pitch:2.3mm-5mm
Fins Height:7mm-16mm
Fin thickness:0.25-1mm

Fin material: Aluminium
Base tube material: Any metallic material

Extruded Fin tube Manufacture:
A core tube is fitted into an aluminium primary tube. This assembly is then fed into the triple-spindle finning machine.

Three special multi-disc packs extrude the aluminium tube into helical high fins while reducing the inner diameter to give

firm pressure contact with the core tube.

Embedded Fin Tube Application:
*Air cooling unit
*Product coolers – gas, chemicals, petrochemicals, oil etc.
*Heat exchangers

High-efficiency fins for higher temperature applications giving complete and permanent atmospheric corrosion protection of the base tube.

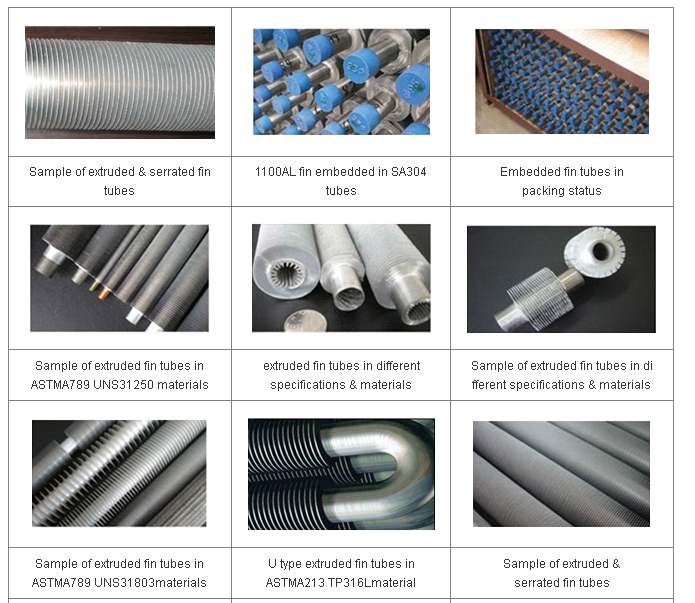

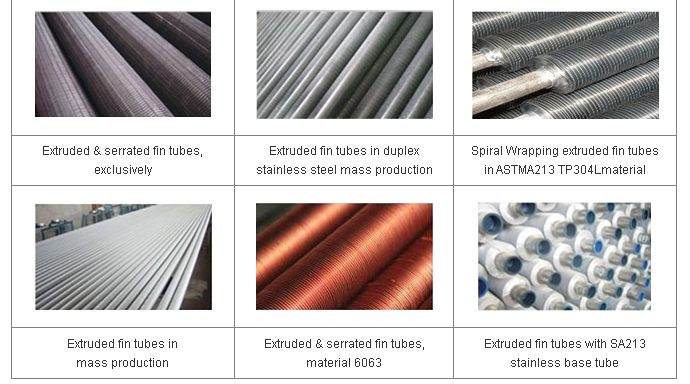

The range of finned tubes and heat exchangers produced by Datang:

Types of heat exchangers produced by Datang
