Project Description

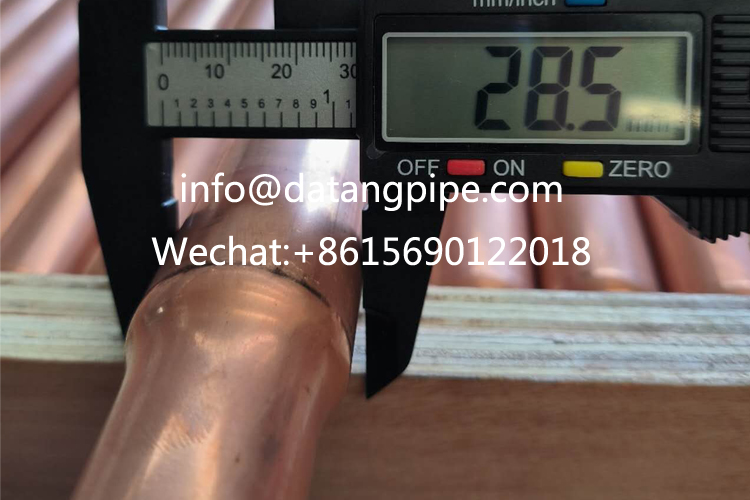

Inner finned copper tube for repair our heat exchanger
- Leave Your Message
Inner finned copper tube for repair our heat exchanger
Reduction in Gas Consumption (~10%)
Increased Combustion Efficiency
Higher Operating Temperature to 2450°F (1340°C)
Longer Tube Life ( > 10 years)
Faster Recovery Rates & Increased Productivity
Better Heat Uniformity & Distribution
Inner finned copper tube for repair our heat exchanger
Internally Finned Tube Dimensions
| U.S. | Metric | ||||||
|---|---|---|---|---|---|---|---|
| Tube (OD) | Max Nozzle | Fin Height | Twist Rates (per rev.) |
Tube (OD) | Max Nozzle | Fin Height | Twist Rates (per rev.) |
| 2-3⁄8” (12 Fins) |
1-7⁄16“ | 1⁄4 inch | 12 inches | 60 mm | 37 mm | 6.4 mm | 305 mm |
| 2-3⁄4” (18 Fins) |
1-9⁄16“ | 3⁄8 inch | 18 inches | 70 mm | 40 mm | 9.5 mm | 457 mm |
| 3-1⁄4” (15 Fins) |
2-3⁄8“ | 1⁄4 inch | 12 inches | 83 mm | 60 mm | 6.4 mm | 305 mm |
| 4-1⁄2” (18 Fins) |
3-5⁄16“ | 5⁄16 inch | 20 inches | 114 mm | 84 mm | 7.9 mm | 508 mm |
| Special fin heights and twist rates available upon request. | |||||||

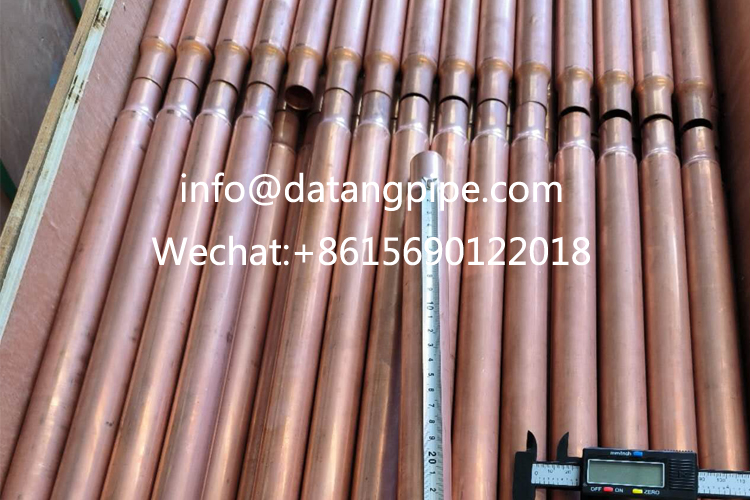

Internal fin tube heat exchanger

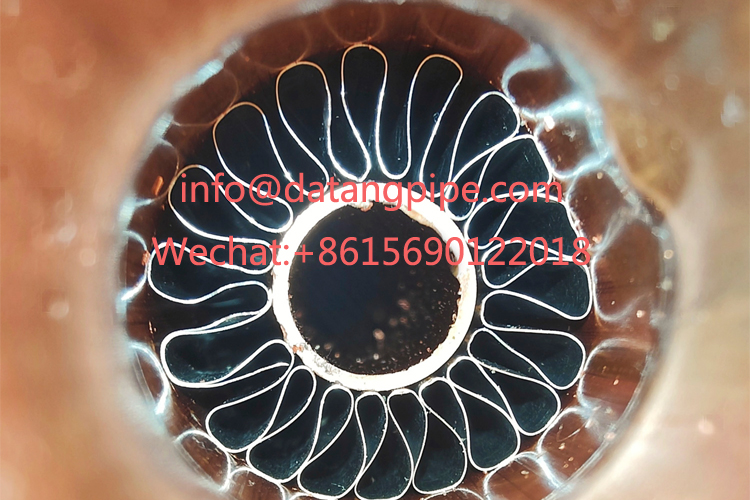

Unique Internal, Spiraled Fins
Our revolutionary, Internally-Finned tubes deliver the same long life and superior heat transfer capability as our Straight-Wall tubes, they literally pay for themselves. By simultaneously stirring the gas flame and increasing the inside surface area to capture more heat, these finned tubes reduce fuel consumption by approximately 10%.
For more information, please contact INEX with any questions via our Contact page.
Datang offers a radiant tube with internally-spiraled fins capable of operating at temperatures to 2450°F (1340°C).
Internal fin tube,internally finned tubes,fin tube manufacturer-www.datangfintube.com
Inner finned tube or internally-finned tube is heat transfer pipe with fins formed on the inside. Such flat and smooth tubes have a larger internal surface area compared to smooth pipe (formal steel pipes with a circular cross section) and possess superior heat transferability. Finned tubes are used in applications involving the transfer of heat from a hot fluid to a colder fluid through a tube wall. The rate at which such heat transfer can occur depends on three factors:
(1) the temperature difference between the two fluids;
(2) the heat transfer coefficient between each of the fluids and the tube wall;
(3) the surface area to which each fluid is exposed. By extending the surface of heat transfer tubes , inner finned tube with longitudinal ribs increases efficiency of heat transferring performance. Compared with the normal smooth tube, heat transferring coefficient of inner finned tube can be increased 3-4 times.
For the sake of personalized demands, customer can decide fin shape and dimensions by discussion with us.
In fact, inner finned tube is our strength. One long-time customer uses our pipes for a heat transfer device that cools insulation oil in an electrical transformer.
