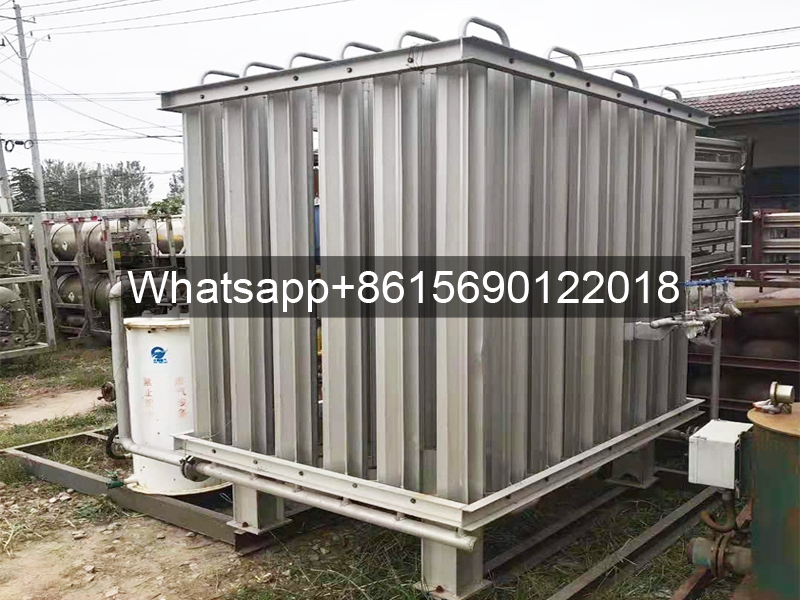

Air Ambient Vaporizer Aluminum Fins

Products Description

Air Ambient Vaporizer Aluminum Fins
When falling from 3-meter-high spot, hot water will be cooled down. This is because heat exchange occurs between the water and the air. Similarly, ambient air vaporizer makes use of the large temperature differences between the cryogenic liquid and the ambient air. The transfer efficiency is improved by increased fin numbers and expanded contact area with the air. So this cryogenic vaporizer achieves a rapid and complete vaporization.

Type: Vertical, three-row, five-stage, water-cooled cylinders without oil lubrication, water cooling, piston type
Exhaust volume: 180 m 3 / h (inhalation conditions)
Medium: dry oxygen
Suction temperature:<40°C
Maximum working pressure: 16.17 MPa (165kgf/cm2)
Piston stroke: 180mm
Cooling water consumption: 6T/hr
Compressor speed: 232r.pm
Motor speed: 960 rpm
Motor power: 55kw
Power supply conditions: 380V (three phase) 50Hz

The Advantages of Air Ambient Vaporizer Aluminum Fins:

-1).No energy consumption, no pollution, environmental protection;
-2).It uses special aluminium material to exchange heat and high efficiency and lightweight design to keep a long service life;the special design of Φ160,Φ200 of large finned aluminium tube heat exchanger to increase the defrosting speed;The unique design of “bridge” type connection, it increases the load capacity and integral stiffness, and it effectively eliminates all parts of thermal stress generated by working;Aluminium heat exchanger tube has surface oxidation treatment.
-3).Optimization of process design, the Pressure drop is reduced to the minimum, no drift phenomenon, ensures the flow control in a safe range.

Ambient air heated vaporizer utilizes air natural convection to heat the cryogenic liquid(LOX,LIN,LAr,LCO2,LNG,LC2H4,LPG,etc.)in the heat exchange tubes,making them totally evaporate into gases ,it is a kind of high efficient energy-saving heat tranmission equipment. Its major advantage lies in:

★ No power consuming,no pollution,green and environmental protective
★ Easy installing,convenient maintaining
★ Patented efficient aluminum material for heat exchanging,high effective,light weight design,and endurable
★ Professional design,removing ice cream easy,continuous long operation
★ The bridge style connecting component sees pretty,and also can eliminate the stress that has been generated because of the
expanding by heating and the shrinking by colding.
★The design of optimizing the flowing has lowed the stress into the lowest lever,and eliminated the deflection phenomenon,and then it can control the speed of flowing within safe range
★ Advanced and complex technique of high-pressing pipe makes the under pressing pipe has a sufficient
contact with the heat exchanging pipe,and ensures the efficiency of heat exchanging
★ All the vaporizer’s manufacturing and cleaning are according to the standard of oxygen service which is much safer for usage
★ Design conditions:temperature -20ºC,relative humidity 70%,continuous use time not less than eight hours.
★ Remark:elements to influence the vaporization volume:cycle of working,environmental temperature humidity,height above the sea level,wind power,illumination,the using press nearby buildings,etc.
