Longitudinal Finned Tube | LFW Type Fin Tube Manufacturer and Supplier in China

Fin Type: LFW Type Fin Tube| Longitudinal Finned Tube
Tube Material: Carbon Steels, Alloy Steels, Stainless Steel, Nickel Alloys, and others
Fin Tube Length: No Limit
Leave Your Message

First Name
Last Name
Email
Subject
Whatsapp&Wechat number
Your message!

Description

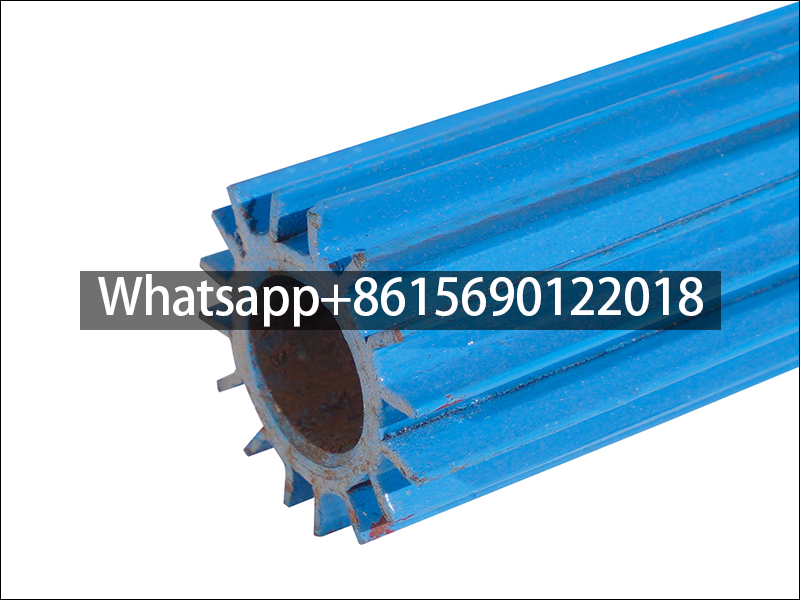

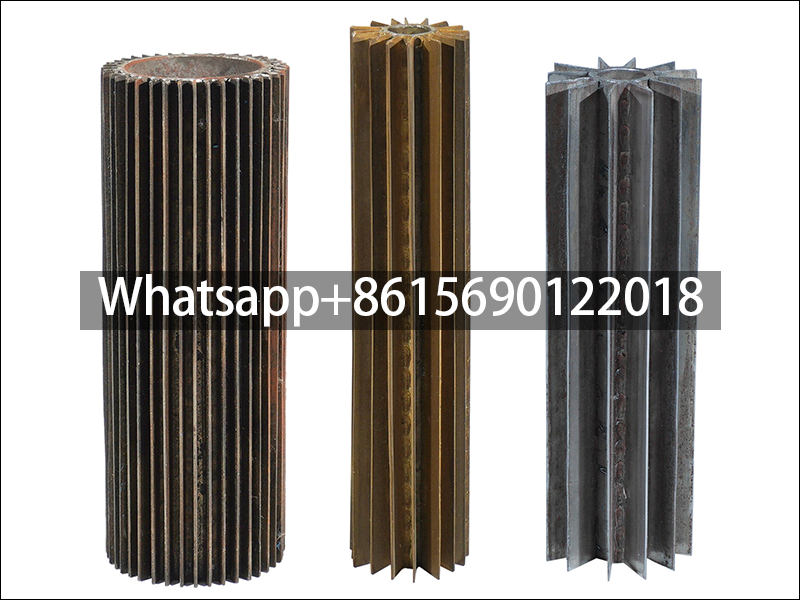

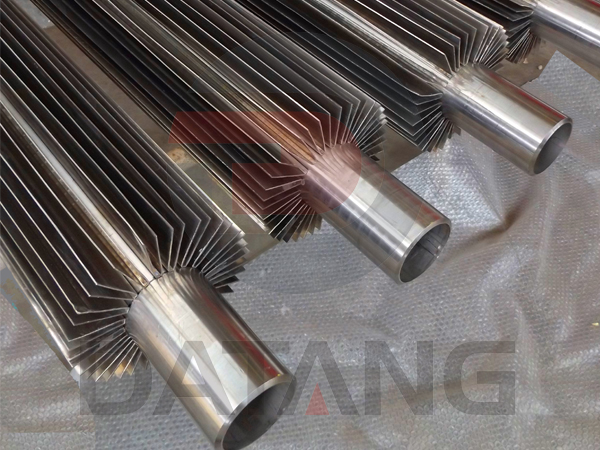

Longitudinal Finned Tube also called Brown Fintube , which produces by high frequency resistance welding fins in the longitudinal direction with the length of the tubes.

I/L or U fins welded longitudinally onto the base tube. Also U-Bend execution possible

Longitudinal Finned Tube,LFW Type Fin Tube Materials:
Carbon Steels, Alloy Steels, Stainless Steel, Nickel Alloys, and others

LFW Type Fin Tube Manufacturing process:
The longitudinal I/L or U fins are welded onto the base tubes by resistance welding or welding with filler metal. U-Bend tubes with LFW, Fins also possible.

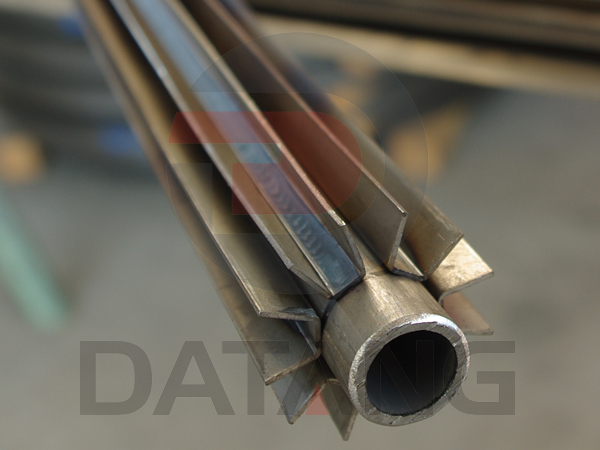

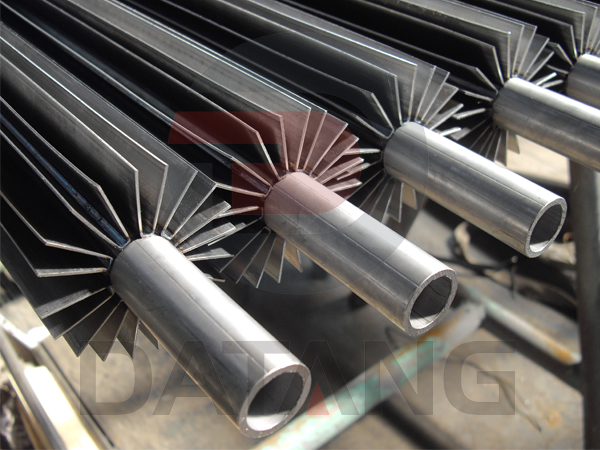

LFW Fin Tube

LFW Type Fin Tube Fields of application:
Chemical-, Petrochemical-, Oil-, Power Industry,Heat-Exchangers,Fired Heaters,Gas Coolers and Heaters,Tank Heaters

LFW Type Fin Tube Advantages
Increase of heat transfer rates for viscous liquids. Perforated fin type used whenever drainage of liquid from fin channels become a problem. Widely used in horizontal heat-exchangers.

As the distance between the longitudinal finned tubes increases, the drag coefficient and pressure drop are generally flat. This is because the overall complexity of the flow channel does not change significantly, and the flow velocity of the fluid in the flow channel changes little. Less affected.
The change of the longitudinal finned tube spacing will not cause the change of the heat exchange area. During the calculation process, the hydraulic diameter on the air side remains unchanged, which has little effect on the fluid Reynolds number, but the heat transfer factor and heat transfer have a slight effect when the longitudinal spacing increases. This is due to the fact that the increase in the longitudinal spacing increases the heat transfer area of the air when it flows in the heat exchanger.
In general, changing the longitudinal spacing to enhance the heat transfer performance of the finned tube heat exchanger has little effect.
In order to forward you a promt offer we would be pleased to receive you detailed enquiry containing:
• Base tube material and quantity
• Base tube size
• Fin material
• Fin type
• Fin diameter or height
• Fin thickness
• Fins per inch, meter or fin pitch
• Lenght of plain, unfinned ends
(nessesary to roll or weld the tubes into tubeplate or assembly)
