Embedded Fin tube/G Type Fin Tube

Common Specifications of G Type Embedded Finned Tube

G Type Embedded Finned Tube Quick Details:
Core tube material:
1. Carbon steel: A179, A192, SA210 Gr A1/C, A106 Gr B
2. Stainless steel: TP304/304L, TP316/TP316L/316Ti, A789 S31803/S2205
3. Copper: UNS12200/UNS14200/UNS70600, CuNi70/30, CuNi 90/10
Fin material:
1. Aluminum (Alu.1100, Alu.1060)
2. Copper.
3. Steel
Fin type: Solid plain
Fin Tube Type: G Type Embedded
Outer diameter (OD): 16mm Min~50.8mm max.
Tube length: up to 18,000 mm.
Fin height: 16.5mm max.
Fin thickness: generally 0.4mm~0.6mm
Fin pitch: 2.1mm minimum (12FPI)
Surface Protection: Both bare ends shall be zinc or aluminum metallized by electrospray arc system coating.
Accessories: Tube support boxes, clamps or spacer boxes (materials: aluminium, zinc and stainless steel).

Additional Info
Payment Terms:T/T, LC
Delivery: 15-30 days after payment
Marking: Standard + Steel Grade + Size + Heat No + Lot No
Package: Iron frame packing boxes and the desiccants are put into each package for continental transportation as well. or as required

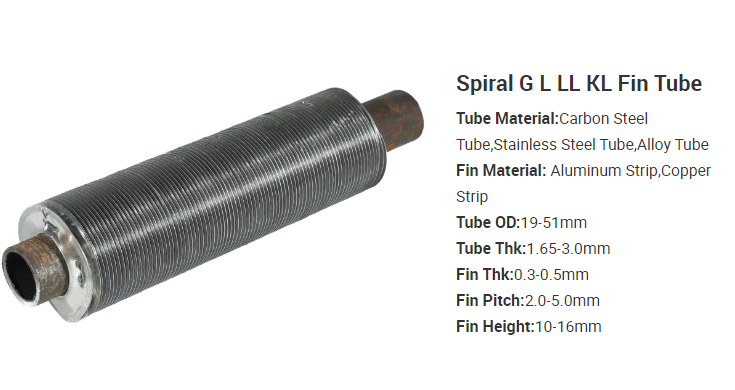

G Type Fin tube
The fin strip is wound into a machined groove and securely locked into place by back filling with base tube material. This ensures that maximum heat transfer is maintained at high tube metal temperatures.
MATERIAL SPECIFICATIONS
