Low Finned tube is a finned tube obtained through plastic cold deformation.
The method consists in realizing, from a smooth tube, fins with a particular geometric form without removing material; this plastic deformation causes an increment of heat exchange efficiency, and allows to reduce the heat exchanger size.
| Low Fin Tube | Tube | Tube Material | Fin | Fin Material |
| Low Fin Tube Turbo-C Tube Turbo-E Tube |
9.52-40mm OD | All Kind of Material | 19-54 Fin/Inch | |
| Corrugated Tube | 6.35-40mm OD | All Kind of Material | 2-9 Fin/Inch | |
| Inner Ridged Tube | 7.93-15.88mm OD | C12200 | 60-75 Fin/Inch | |
| Flower | 16.0-19.0mm OD | C12200 | 12-15 Fin/Inch |
TECHNICAL SPECIFICATIONS – LOW FINNED TUBES
It is possible to produce low finned tubes with different materials and dimensions, on customer request.
| Standard Dimensions – Low Finned Tubes | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outside Diameter | Thickness | Length | Fin Density | ||||||||||||||||
|
|
|
|
||||||||||||||||
| Materials – Low Finned Tubes | |
|---|---|
| Carbon Steel | SA 179 / A 179 |
| Carbon Steel | SA 210 / A 210 |
| Carbon Steel | SA 334 / A 334 |
| Stainless Steel | SA 213 / A 213 |
| Duplex Stainless Steel | SA 789 / A 789 |
| Copper & Cu Alloys | SB 111 / B 111 |
| Titanium & Ti Alloys | SB 338 / B 338 |
| For different materials please contact our sales department. | |
| Standard Technical Specifications – Low Finned Tubes | |
|---|---|
| Carbon Steel | ASTM A 498 |
| Stainless Steel | ASTM A 1012 |
| Copper and Copper Alloys | ASTM B 359 |
| Titanium | ASTM B 891 |
| For different materials please contact our sales department. | |
| After Finning Conditions – Low Finned Tubes |
|---|
| As-Fabricated Temper (As-Finned Condition) |
| Stress-Relieved Anneal |
| Annealed (Bright Annealing) |
| Inspections and Tests – Low Finned Tubes |
|---|
| Chemical Composition |
| Mechanical Properties |
| Hydrostatic Test |
| Pneumatic Test |
| Boroscopic Inspection |
| Eddy Current Test |
ALSO AVAILABLE – LOW FINNED TUBES |
|
|---|---|

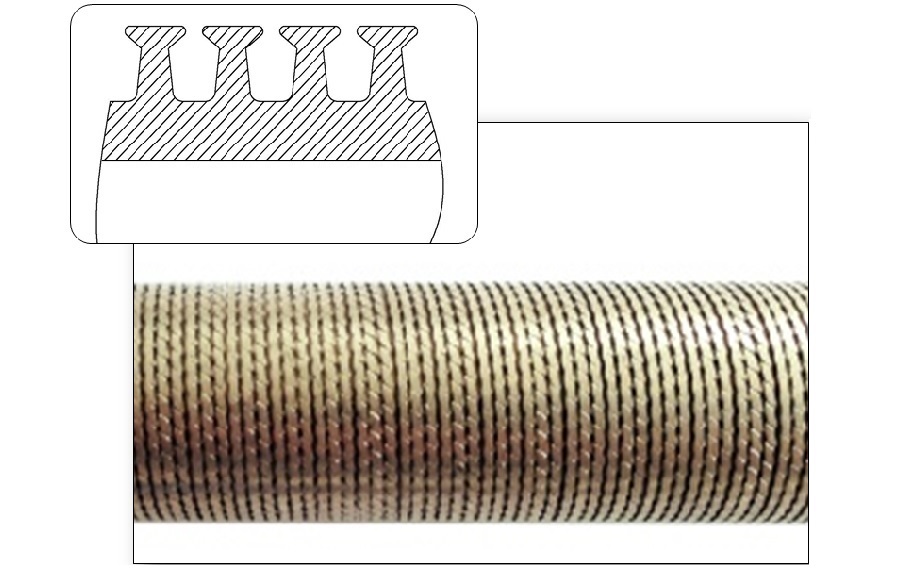

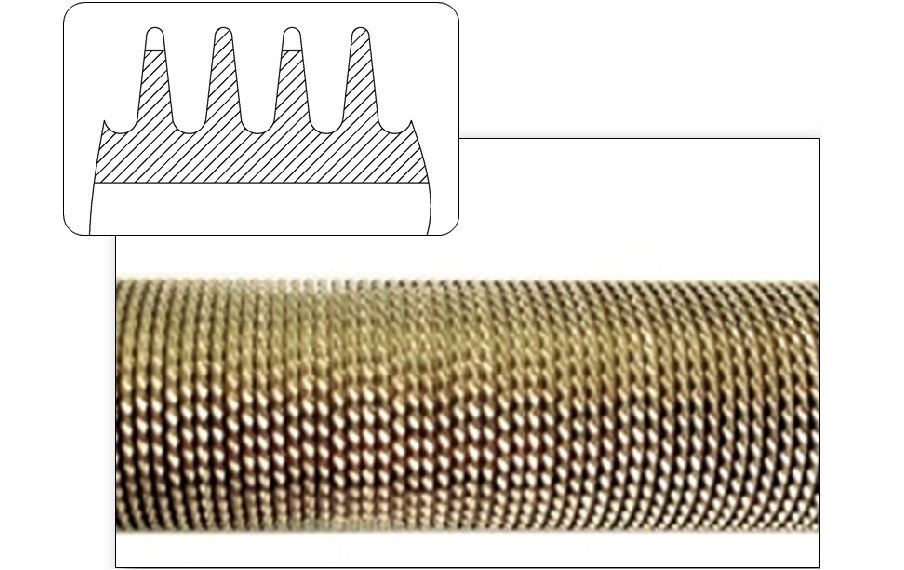

| Condenser Tube “Y-fin” | Evaporator Tube “T-fin” |
 |
 |

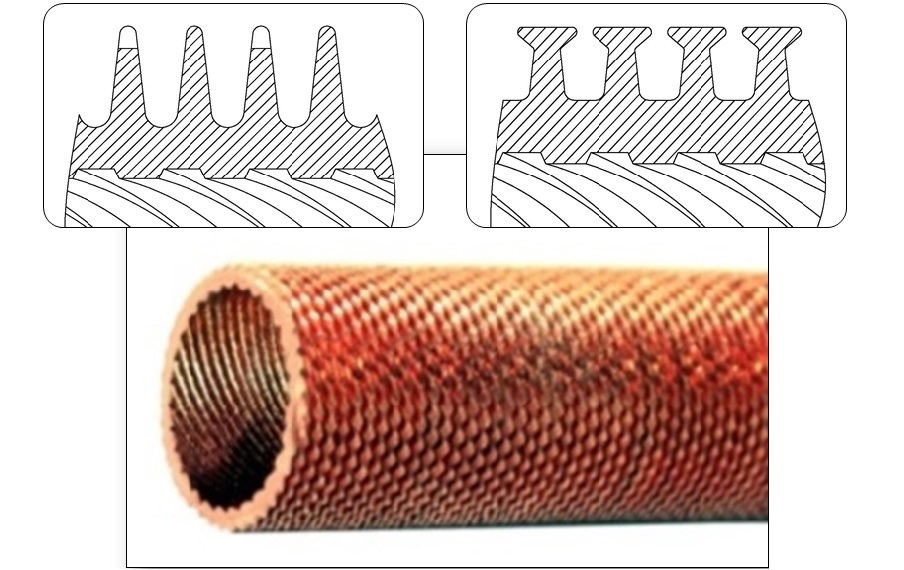

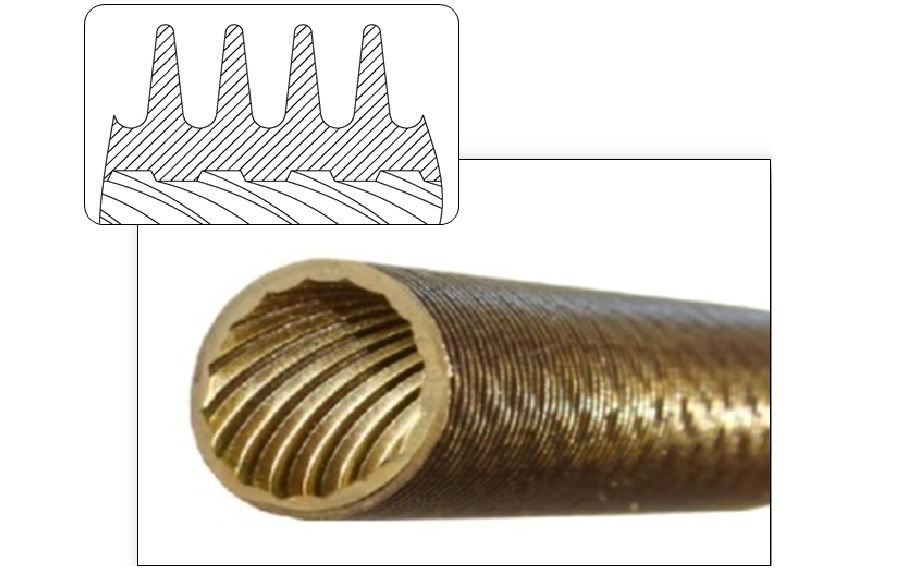

| Inner Grooved (IG) Low Fin Tube | Inner Grooved (IG) Y-Fin / T-fin Tube |
 |
 |

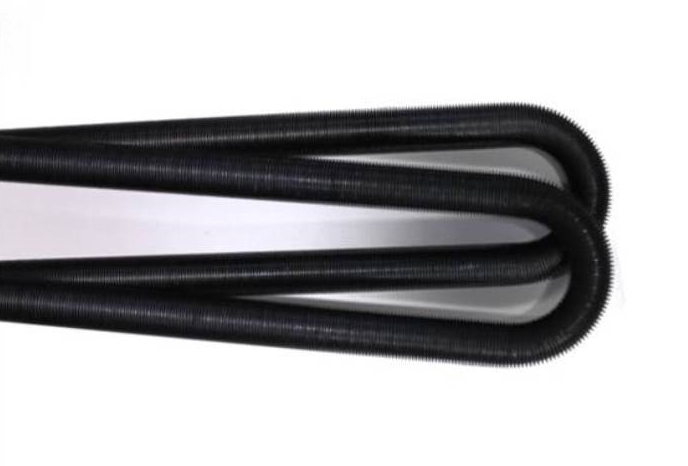

| U-Bent Low Fin Tube | Annealed Low Fin Tube |
 |
 |
