Copper Fin Tube,Copper Tube Aluminum Fin Manufacturer,Suppliers and Factory

Fin Type: Extruded Fin Tube
Tube Material: Copper, Aluminum
Fin Material: Copper, aluminum
Leave Your Message

First Name
Last Name
Email
Subject
Whatsapp&Wechat number
Your message!

Description

A fin tube is a tube that has small fins around the outside surface. These fins act as a filter and a mechanism to transfer heat from the material inside the tube to the outside space or vice versa. Fin tubes are used in applications that require a transfer of heat from a hot fluid to a colder fluid through the tube’s wall.

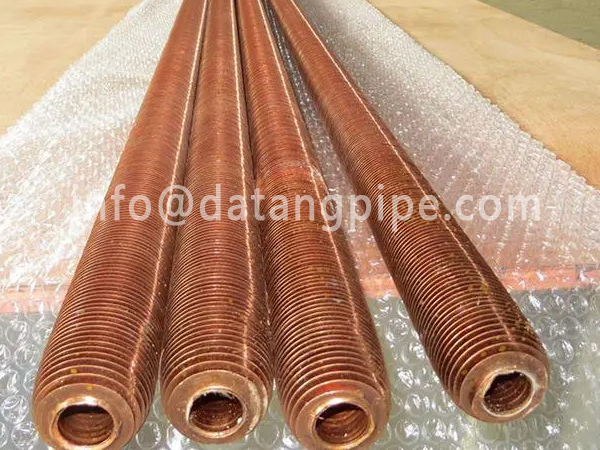

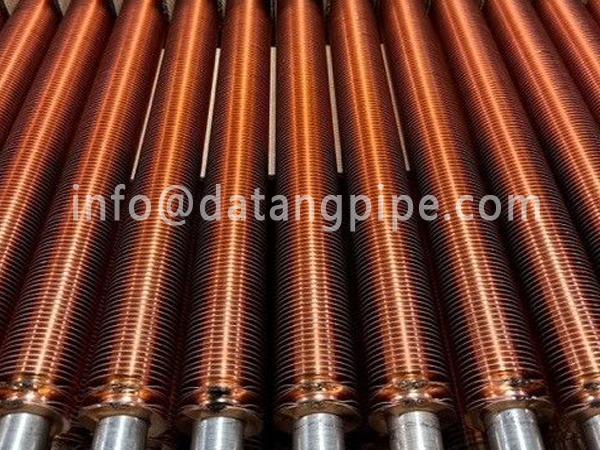

Copper Fin Tubes are processed out of good Quality plain Copper Tubes conforming to SB – 111 UNS No. C-12200 / C-122000 and Finning will be carried out as per SB-359 UNS No. C-12200 / 12000. Plain Copper Tubes for processing Fin Tubes will be procured from Indian Plain Tubes manufacturers only, as per the code and specification.

Aluminium,Copper Fin tubes are used generally for various Heat Exchanger Applications viz. Condensers, Evaporators, Chillers, Economizers, Oil Coolers, etc. Copper DHP Fin Tubes are extensively used in sugar refineries for condensers and evaporators. Deoxidized copper is the standard material for transferring heat from steam to water or air because of their excellent resistance to corrosion by fresh water and their high thermal conductivities.

Aluminium,Copper Finned Tubes are mostly used in heat exchangers for applications for cooling and heating of liquid and gas, including water, oil, steam and air as well as for condensation, evaporation. These fin tubes are manufactured in various sizes ranging from 9.52mm OD up to 25.40mm OD and Wallthickness of the plain tubes from 0.91mm up to 4mm, depending upon the technical Parameters, required by customer.

Material [ MOC ]	Copper SB111 UNS No. C-12200 / 12000
Finning	As per SB-359
Diameter	9.52mm, 12.70mm, 15.88mm, 19.05mm, 22.20mm to 25.40mm
Wall thickness	0.91mm up to 4mm
No. of Fins per Inch	: 19, 26, 30, 36, & 40 FPI

Copper Low Fin Tubes are available with exact lengths required by customer.
Copper Low Finned Tubes are available with plain portion at both ends, as per customer specification.
Copper Fin Tubes are available with Intermediate landings (plain portion for baffle sheet support), as per customer requirement.
Copper Fin Tubes will be supplied, duly Pneumatic Pressure Tested or Hydro Tested, after finning.
Copper Fin Tubes will be supplied duly Stress Relieved on in-house Electric Conveyor Belt Furnace, as per SB-359, on customer specific requirement.
We shall provide MTC alongwith our supply documents.

Aluminium,Copper Fin Tube

Datang provide a wide range of fin tubes are used in heat exchangers (air, water and chemically cooled) for various industries such as petroleum, petrochemical, steel, power generation and many more.

Product Range :
Bare Tube diameter : 15.8mm ~ 50.8mm
Fin Pitch : 6.5 ~ 12.5 FPI
Fin height : 10 ~ 16mm
Fin Tickness : 0.3mm ~ 0.4mm
Fin material : Aluminium , Copper , SUS 304
Max. Length : 20 m

Finned Tube Fin Type

Finned Tube Fin Type Fin Tube Fin Type

Finned Tube Fin Type

Finned Tube

Fin Tube

Company

Cangzhou Datang Steel Pipe Co., Ltd located in Cangzhou City,the hometown of pipelines, is a collection of research and development, production, sales in one of the enterprises. The company was founded in 2007 with registered capital 10.08 million RMB, and through the IS09001 international quality system certification, we has high frequency resistance welding finned tube production line 18, extruded finned tube equipment 30, laser welding finned tube production line 2, wound finned tube production line 12. The annual capacity can reach 100,000 tons, the specification φ 18-273mm finned tube, according to the customer requirements of the standard production, service has exceeded 3000+ enterprises.

Our companys tenet is to be Chinas most professional pipeline and equipment suppliers, on the basis of seamless steel tube, integrate the national high quality pipe equipment resources, provide one-stop packaging services,quality makes customer trust, service makes customer relieved, result makes customer comfort, building a conscience, good-hearted, have the sense of responsibility, contributes to the society of the enterprise.Our slogan is professional concentrate in pipeline & accessories 20 years.
