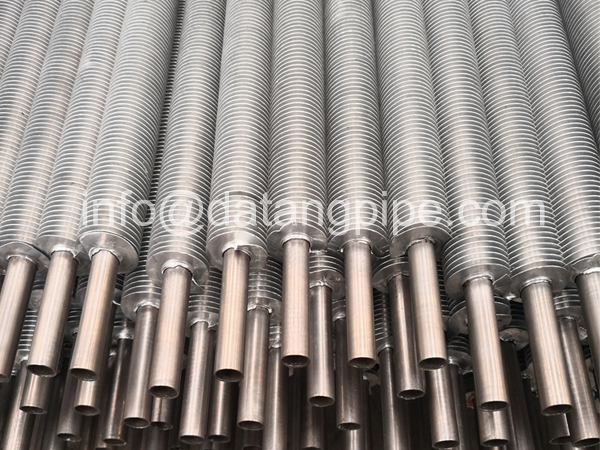

Smls Tube Sa213 Tp321 L-type Fin Al 1060 Finned Tube(L-образная ребристая трубка)

Fin Type: L Type Fin Tube
Leave Your Message

First Name
Last Name
Email
Subject
Whatsapp&Wechat number
Your message!

Description

Aluminum L-Foot Finned Tubes are typically used in applications where temperatures do not exceed about 450 degrees F, primarily in air-cooled applications. Other examples include large radiators, such as large compressor oil coolers, and other forced-draft or induced-draft air-cooled applications.

Description:

L finned tube

“L” Finned tube

Economically produced fin tube for moderate working temperature up to 150ºC
“L” finned tube relies on maximum surface contact between fin and tube which is ensured by tension forming fin strip helically around the base tube.
A considerable degree of protection is given to the tube by the base of the fin.
We can also fin Nominal bore tube from 3/8” to 1 ¼”.

Manufacturing details:

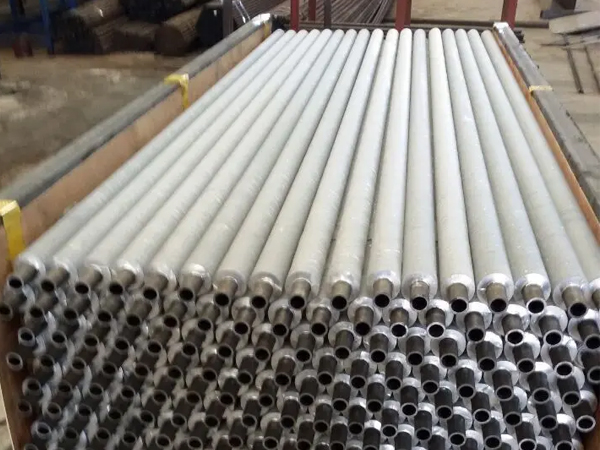

Aluminium “L” finned tube

Max. Fin Height – 22.22 mm (0.875”)
Min. Fin Height – 9.5 mm (0.375”)
Max. Fin Density – 11 FPI (433 FPM)
Min. Fin Density – 5.2 FPI (205 FPM)
Max. Tube Diam. – 38.1 mm (1.5”)
Min. Tube Diam. _ 12.7 mm (0.5”)
Max. Tube Length – 15m (49ft)

Copper “L” finned tube

Max. Fin Height – 19.05 mm (0.75”)
Min. Fin Height – 6.35 mm (0.25”)
Max. Fin Density – 11 FPI (433 FPM)
Min. Fin Density – 5.2 FPI (205 FPM)
Max. Tube Diam. – 38.1mm (1.5”)
Min. Tube Diam. _ 9.5mm (0.375”)
Max. Tube Length – 15m (49ft)

Base tube material

Carbon Steel, Stainless steel, Copper, Copper alloys, Titanium.

ASME SA 179 Specification

ASME SA 179 Carbon Steel Seamless Tubes are Low Carbon Steel Tubes with 0.06-0.18 % carbon content with combination of 0.27-0.63 % manganese. These Tubes are also known as mild steel pipes and tubes. ASME SA 179 Tubes are low-cost Tubes easy to form and shape. These pipes are manufactured as per ASME Specification and commercially referred as cs pipes or ms pipes. Low Carbon Steel Pipes are not as hard as hig carbon steel pipes,Though carburizing can increase its surface hardness.

Specifications:
Tube OD	5/8”, 3/4”, 1”, 1-1/4” and 1-1/2″
Fin Height	3/8″, 7/16”, 1/2” and 5/8″
Fin Type	Solid or Perforated
Fin Thickness	0.014” to 0.016″
Number of fins	8 to 12 fin per inch
Fin Material	Aluminum 1100-0 or Aluminum 1060
Tube Material	Generally carbon steel, stainless steel, or brass — can be any material
Tube Length	No practical limit

Applications:

A wide variety of economizers and waste heat recovery units to utilize heat from boiler flue gas, gas turbine exhaust, incinerators, etc.

Glycol dehydration units

Fired heaters, such as LNG vaporizers, air pre-heaters, oil heaters, etc.

Asphalt tank heaters

Air coolers, such as compressor jacket water and lube oil coolers

Lumber drying kilns, and similar applications

Livestock enclosure and greenhouse heaters
