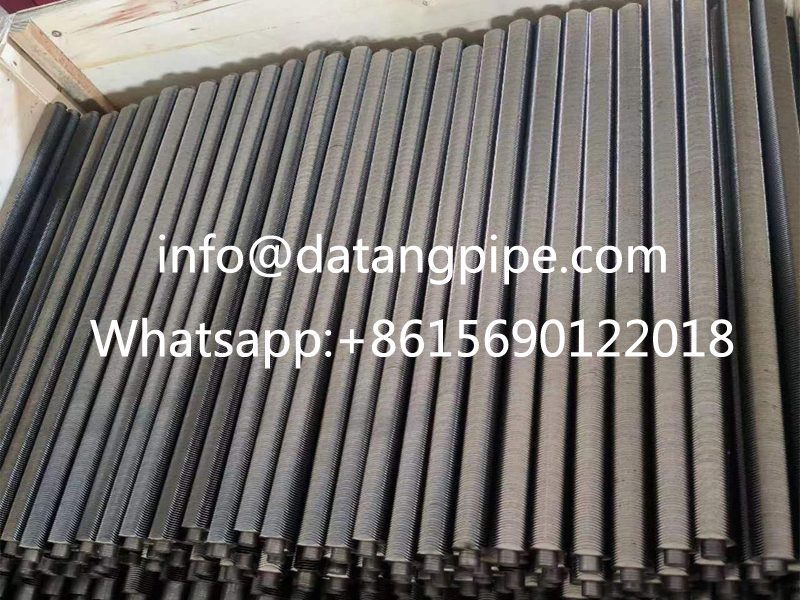

304/316L stainless steel spiral 32mm laser welded fin tube chemical heat exchange equipment

The laser welding process enables the production of completely individual, 100% gap-free stainless steel finned tubes for every requirement.

• 100 % flexibility
  freely combinable of tube and fin material
• 100 % gap free
• because of 100 % laser welding of fin and tube
• Increased heat transfer – high performance
  because of 100 % laser welding of fin and tube
• High corrosion resistance against aggressive media
  because of flexible use of different material combinations
• High reliability with highest output
  because of inseparable 100% laser welding
• Easy shaping of the finned tubes
  because of simple bending and coiling of the finned tubes
• Compact heat exchanger design
  because of high outside heat surface of the finned tubes
• Low heat exchanger weight
  because of reduced tube numbers
• Standard tube materials
  Stainless steel 1.4301 (TP304), 1.4404 (TP316L), 1.4571 (TP316Ti)                            and more materials on request
• Standard fin materials
• Stainless steel 1.4301 (TP304), 1.4404 (TP316L), 1.4571 (TP316Ti)                    Copper (Cu-DHP), Aluminium (Al99,5 EN AW-1050A)                                                      and more materials on request

Laser welded fin tube are suitable for all types of heat exchangers for cooling and heating gases and liquids – especially for the following fields of application:

Heating Industry
Primary heat exchanger in gas- and oil condensing heating boilers
Direct fired primary heat exchanger for gas-condensing tankless instantaneous water heating boilers to heat up tap water
Secondary heat exchanger for gas- and oil condensing heating boilers to pre-heat heating water – Economizer
Secondary heat exchanger for micro CHP systems – Economiser

Heatrecovery
Flue gas cooler
Heat exchanger for the bakery industry to pre-heat heating water – Economizer
Mechanical and plant engineering
Heat exchangers for gas cooling of industrial furnaces
Heat exchangers for tank heating
Oil coolers for vacuum plants, ship plants, pumps etc.
Heat exchangers for oil preheating or cooling
Power plants
Cooling towers or cooling water recooling plants with dry or wet operation
Sodium coolers for Fast Breeder power plants
Flue gas cooling and heating in flue gas desulfurisation scrubbers (FGD) and nitrogen removing plants (DENOX)
Chemical industry
Heat exchangers of all kinds for cooling and heating of liquids and gases
Heat exchangers for nitric acid (HNO3) plants, e.g. for the fertilizer
