AIR COOLED HEAT EXCHANGER

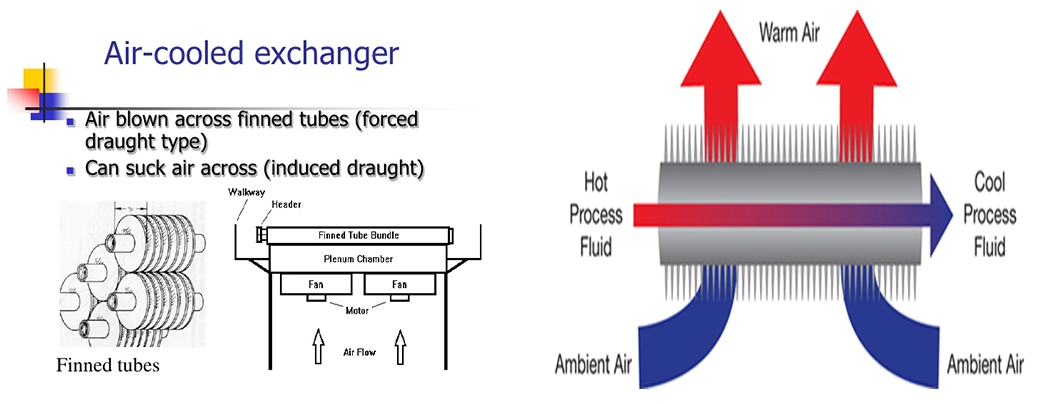

Air Cooled Heat Exchanger (ACHE) is a heat rejection equipment where the excess process heat is rejected to the atmosphere. It works on the principle of convection and conduction to dissipate heat from process fluid to air. The process fluid passes through the tubes and air stream is passed over the tubes to carry away the heat; air streams are created by the fans mounted on the unit. By suitably selecting the tube material, ‘ACHE’ can effectively cool or condense process water, chemicals or any other heat transfer fluid.

Datang can offer custom built Air Cooled Heat Exchangers based on the application and nature of working fluids.

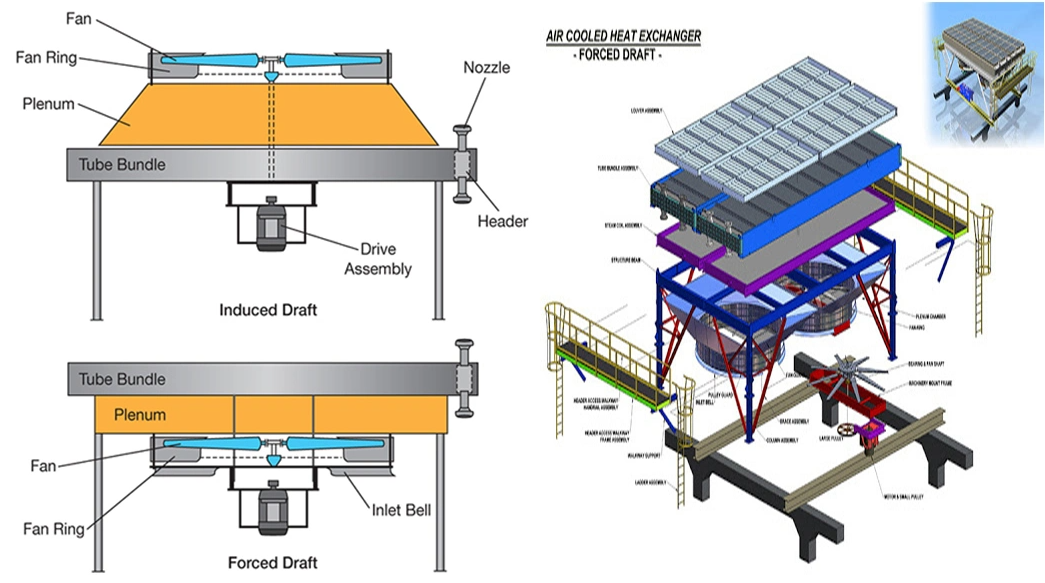

The tubes which carry the process fluid are of carbon steel or stainless steel with aluminium high fins to maximise the heat transfer. Fin type can be L, LL, KL, G gin, Extruded fin based on the specific requirement. The fans can be mounted according to induced draft or forced draft type, depending on the application. The fans are of direct drive type, but options with gear box or belt drive are also available.

air-cooled exchanger-air fin cooler

AIR COOLED HEAT EXCHANGER PRODUCT FEATURES
Highly efficient fin to tube heat transfer
Separates process side from any contamination due to closed loop system
Zero usage of water which results in:
– Zero water wastage due to closed loop operation and no evaporation
– No water treatment plant as it doesn’t require continuous supply of makeup water
– Negligible maintenance cost as water treatment, makeup water and replacement of fills are not required
– No periodic cleaning required

air cooled heat exchanger-fin fan cooler heat exchanger-air fin cooler

air cooler-heat exchanger manufacturer-Datang Fin Tube air cooled heat exchanger-fin fan cooler

Product Capacity : 200 kW onwards
Fluid Temperature: 30°C to 240°C with a minimum approach of 4°C above dry bulb temperature.

At Datang, we pride ourselves on delivering cutting-edge solutions like our Fin Fan Coolers and Air Cooled Heat Exchangers. With precision-engineered performance and customizable options, our products are designed to meet the highest industry standards and cater to diverse applications, including Oil & Gas, Petrochemical, and Power sectors.
